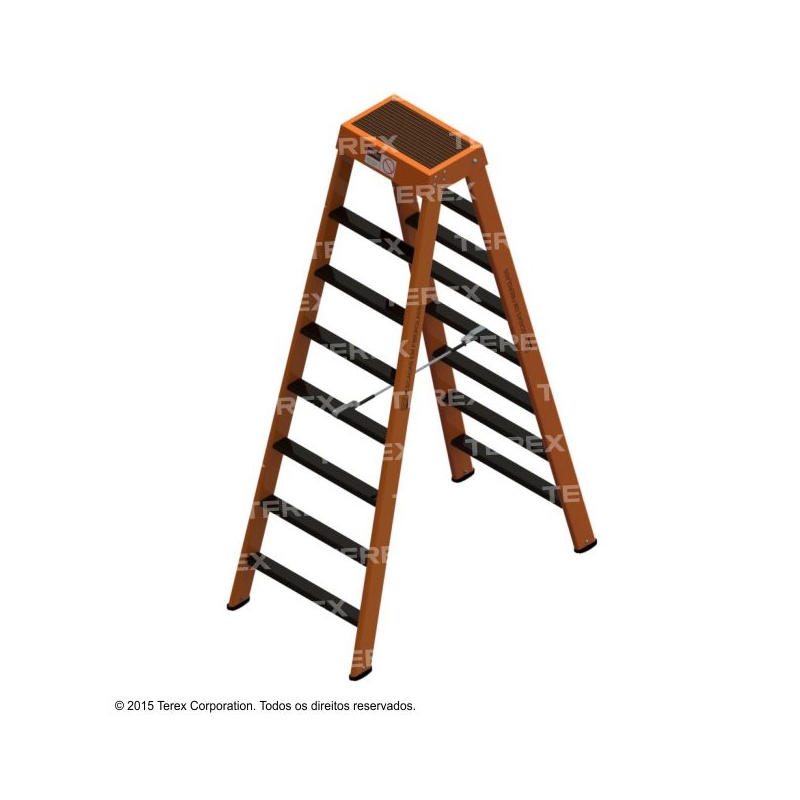

A Shape Ladder

Description

Designed for maintenance on deenergized structures. Consisting of segments hinged together at the upper end, with opening limiter. It has plank at the top end for placement of tools and other objects.

For stairs in "A" heavy category, supplied with dia. 3/8" fiberglass rods with in the center of the stairs, should be added to its cat nº, the suffix" / TR ".

Example: EA/PR-21/PD/TR

Double

Rungs on both sides.

“A” SHAPE LADDER

Cat. No.

Work Lenght (ft)

Qty. of
Rungs at
each side

Approx. Weight (lb)

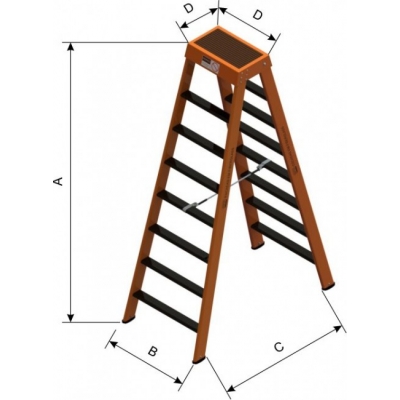

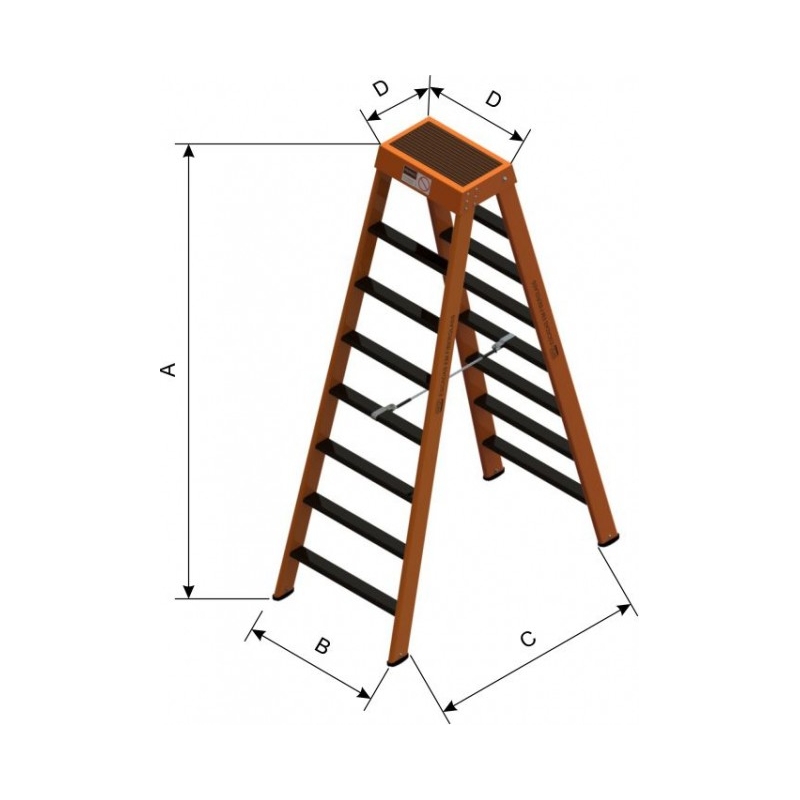

A

B

C

D

 EA/PR-12/PD

4.00

1.80

3.05

1.38 x 0.82

03

32.29

 EA/PR-15/PD

4.95

1.90

3.80

1.38 x 0.82

04

41.00

 EA/PR-21/PD

7.00

2.05

4.30

1.38 x 0.82

06

56.22

 EA/PR-27/PD

9.00

2.30

5.90

1.38 x 0.82

08

72.09

 EA/PR-34/PD

11.00

2.60

7.00

1.38 x 0.82

10

88.84

 EA/PR-40/PD

13.00

2.80

7.80

1.38 x 0.82

12

105.82

 EA/PR-52/PD

17.00

3.20

10.00

1.38 x 0.82

16

141.76

Distance Between Rungs : 305 mm
