Description

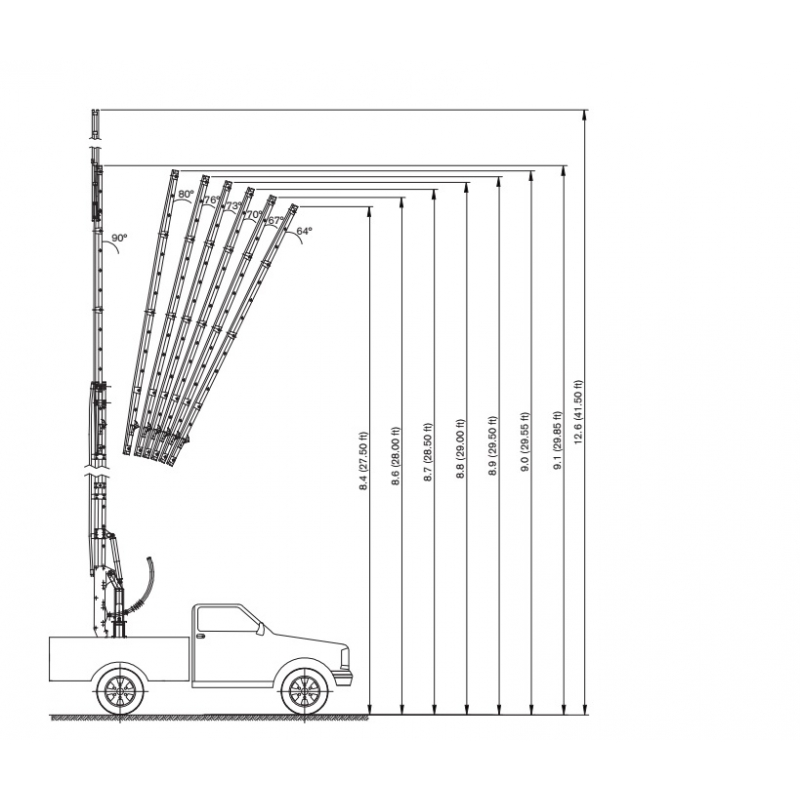

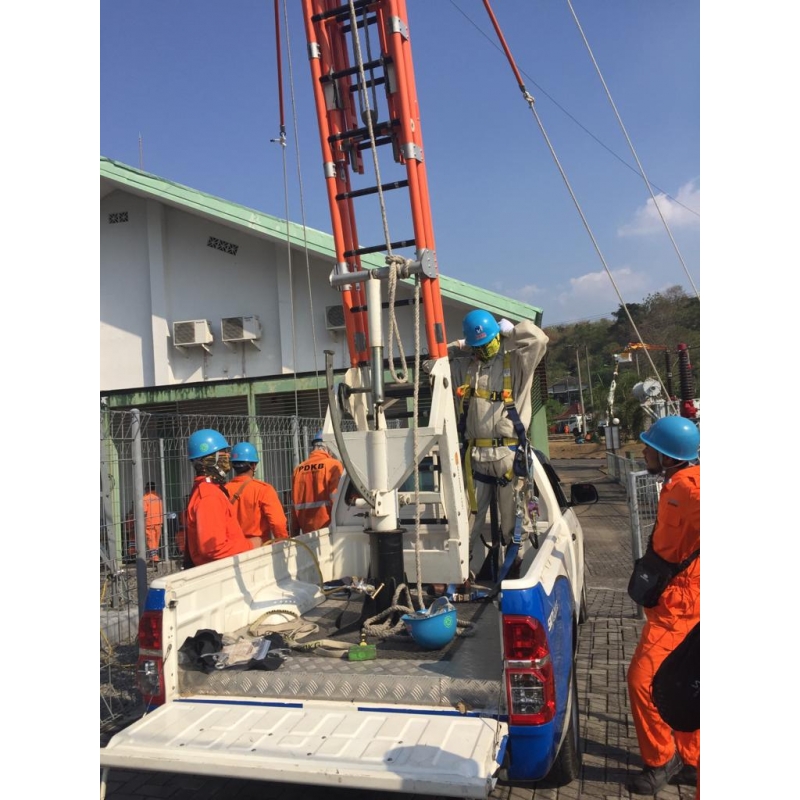

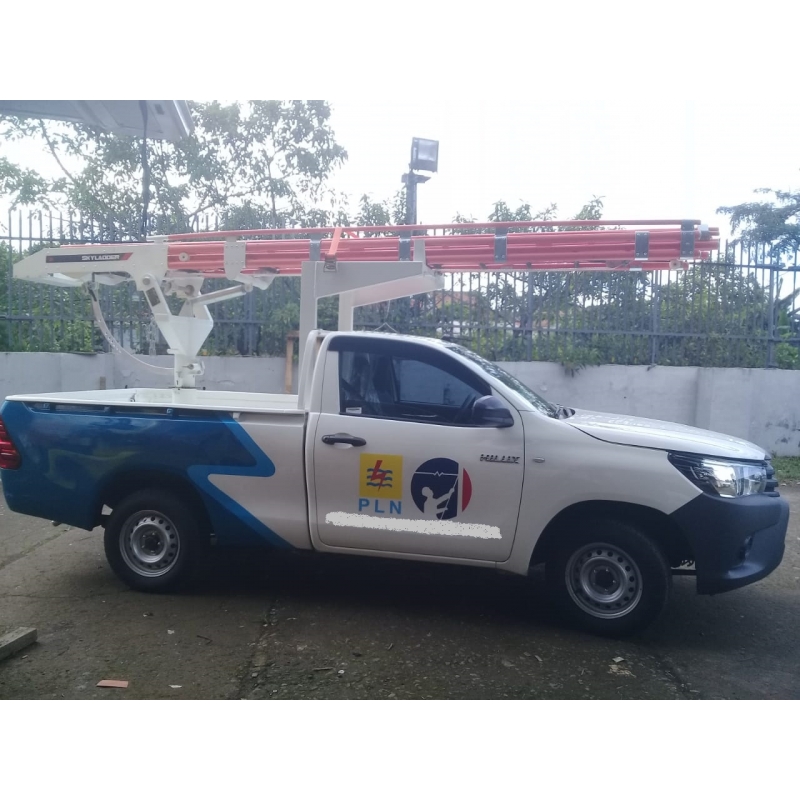

Equipment composed of a ladder mounted on a rotating  and tilting base

This equipment was specifically conceived for hot line work of up to 500kV system voltage. SKYLADDER-LV/01 ladder are made of Ritzglas pole, with an orange color polyurethane enamel finish of high dielectric strength. Rungs are painted black and covered with sliding-proof material. Supplied with two sections (the first one is fixed and the second one can be extended). Optionally, an additional extension can be provided.

The rotating and tilting base is made of structural steel finished with synthetic painting.

The Ritzglas pole used for the ladder siderails and handrails are manufactured and tested according to ASTM D711 Satndard and the ladder are tested before assembly on the vehicle, according to NBR 1450 Satndard.

For inquiries, following information about the vehicle on which the equipment will be assembled is necessary : brand, model, year of manufacture, type of cabin, body details.
