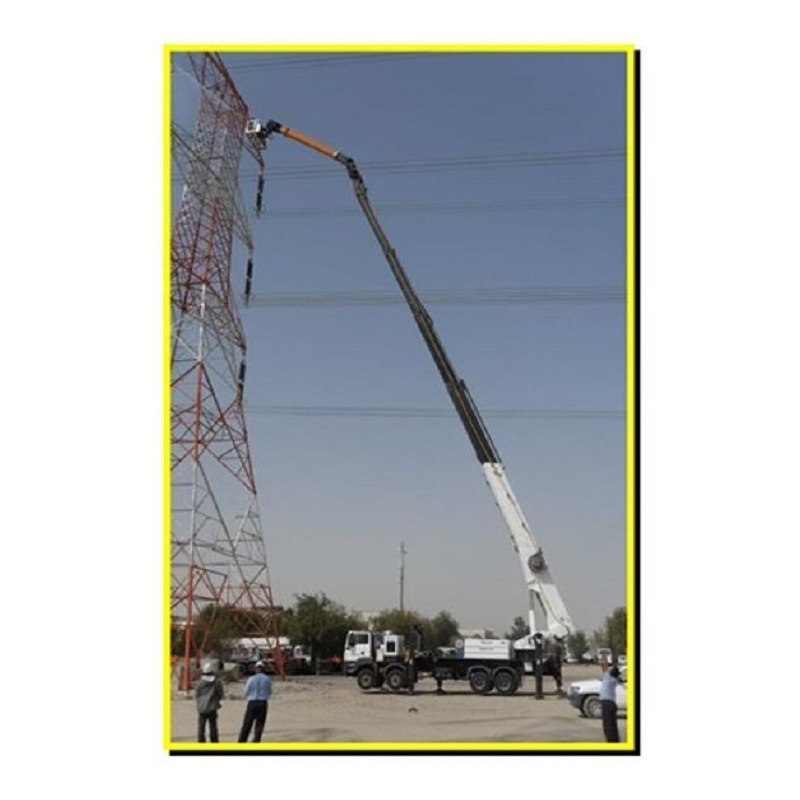

This multiple section telescoping boom articulating aerial platform series can be used in combination with the TRANSLINK Insulator Washer Skid unit and water tank to give a fully integrated Insulator Washer Boom Truck.

It is capable of washing insulators up to 756kV at heights above 60m. The tele-boom and the Insulator Washer (optional) comply with the IEEE-957 as well as ANSI 92-2-2001 International Standards.

Standard Features - Tele-bom

- Heavy-duty compact low maintenance steel keel boom design.

- Upper boom is articulated and manufactured from high tensile materials.

- Smooth hydraulic jack and boom controls.

- Heavy duty mainframe with 4 "H" type out and down outriggers with integral hydraulic oil storage tank.

- Jacking width and deep penetration vertical jacks allow levelling up to 5 degrees laterally.

- Dual failsafe tele-boom outreach management system.

- 135 litre hydraulic tank capacity.

- Heavy duty turntable with ball race slew ring and hydraulic rotation gearbox worm and pinion.

- Lock valves on all hydraulic cylinders.

- Hydraulic swivel allows full 360 degrees continuous rotation.

- Outrigger, boom, and column interlock.

- Boom Power by PTO unit fitted to vehicle with interlock indicator.

- Platform out of stability warning alarm.

- Large operator platform with fibre optic controls and wirreless voice communication systems.

- Emergency bleed down hand pump.

- Hydraulic system air cooler and 6 micon heavy duty suction filter assembly.
