- Insulation test up to 2 TΩ.

- 4 test voltages: 100V - 250V - 500V - 1000V.

- GUARD terminal.

- Multiple scales for accuracy improvement.

- Taut-band analog meter.

- High accuracy.

- IP54 protection (with closed lid).

- Rechargeable battery.

Description

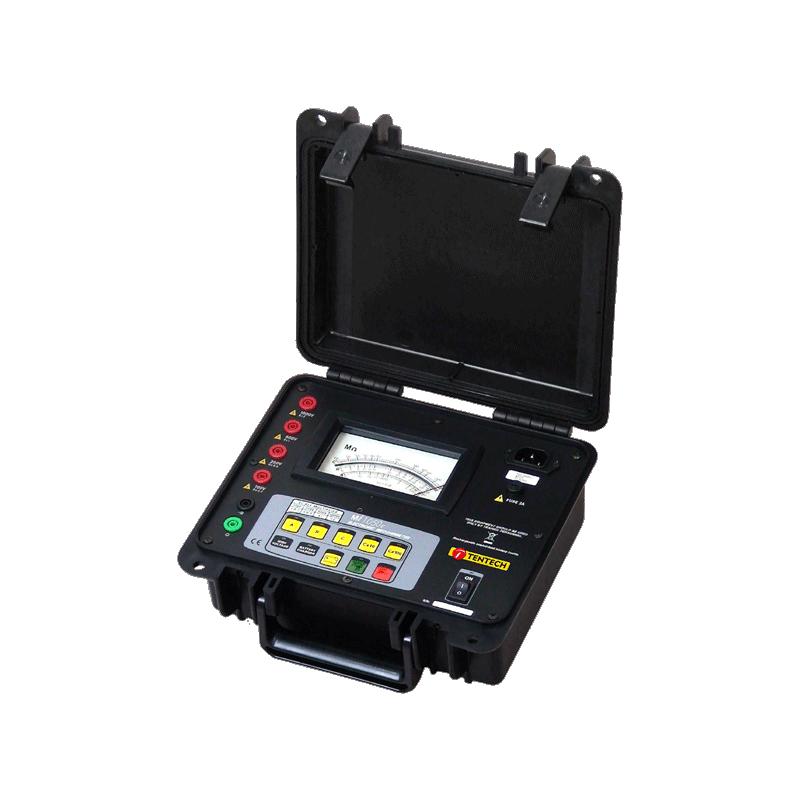

The MI1050e general purposes insulation tester is a truly portable equipment suitable to measure insulation resistances using test voltages up to 1 kV. It employs high-reliable, state-of-the-art technology for accurate measurements of ultra high insulation resistances up to 2,000,000 MΩ with four test voltages: 100 V - 250 V - 500 V - 1000 V. Readings are performed through an easy-to-read analog indicator having a broad scale.

Many experienced technicians consider that insulation measurements are best performed with analog instruments, because they get useful information from the pointer displacement along the time. This equipment is specially indicated for that people, because it is a true analog, simple to use, cost effective insulation resistance tester.

Insulation of low voltage in electrical systems, transformers, motors, cables, electromedical equipment and installations, distribution networks, etc., the measurements are easily performed with great reliability, using this instrument.

In order to maximize the operator's safety, this equipment was made within a plastic cabinet of high breakdown strength, a light indicator warns about dangerous voltages presence both in the equipment and in the element under testing, and switches-off automatically when the discharge process has finished. This insulation tester has a GUARD terminal that allows to remove the effects of parasitic resistances and surface currents on the insulation resistances to be measured.

Due to its reduced size and weight, its power autonomy and mechanical strength, this equipment is suitable for working out in the field, under severe weather conditions. It is battery powered with an internal, rechargeable battery. In order to easily carry the cabinet, it is closed and water-, dust- and sand-resistant. It provides an IP65 protection (with closed lid) and is supplied with a complete kit of test leads.
