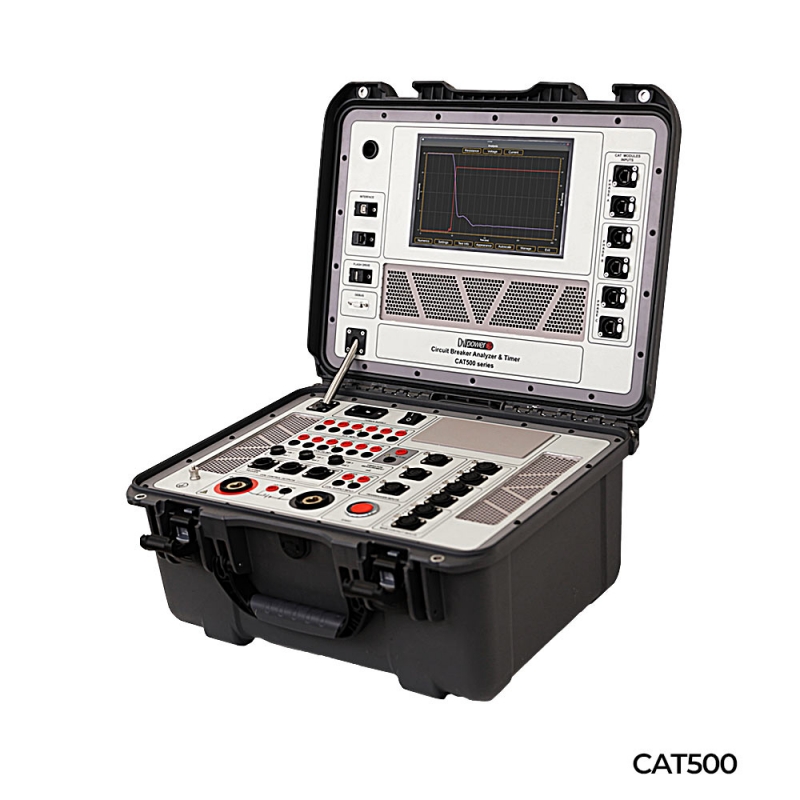

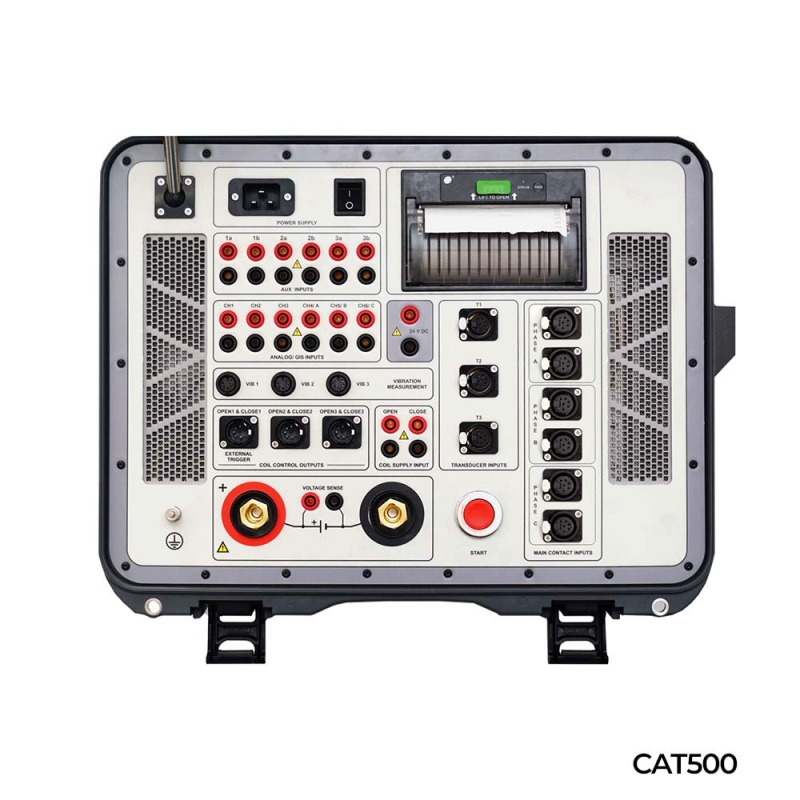

CAT500 summarizes all our experience and knowledge in the design of circuit breaker testing equipment for the past 15 years.

CAT500 introduces some unique testing features and significantly saves the time required for condition assessment of all types of medium- and high voltage circuit breakers.

Features

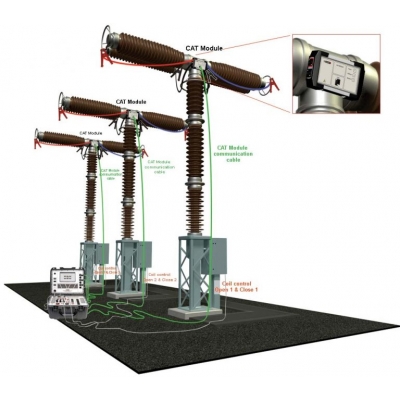

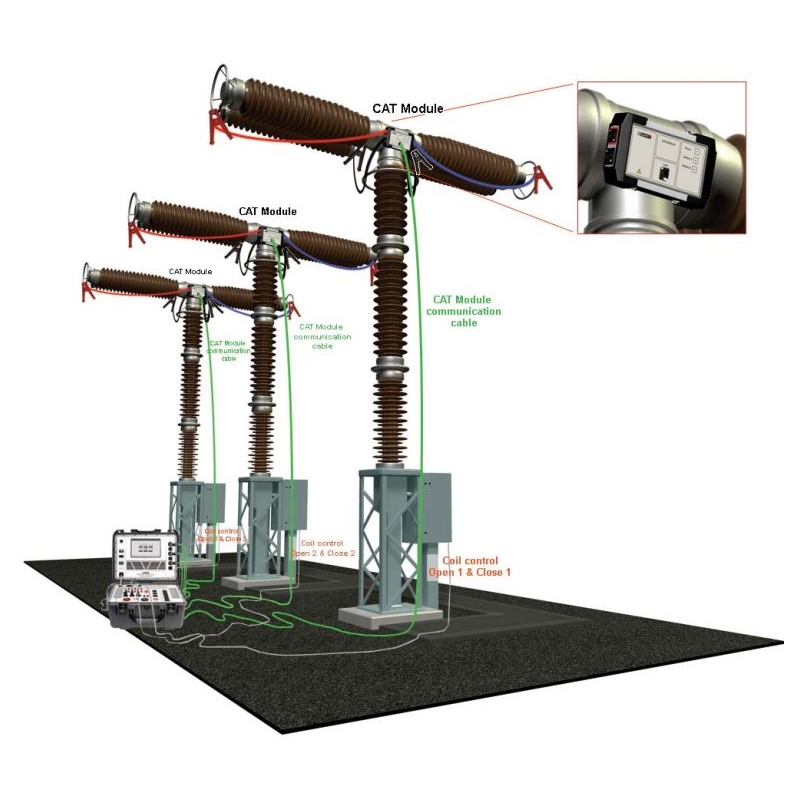

• Simultaneous timing, static resistance, and dynamic resistance measurement on up to 12 main contacts chambers under BSG conditions by use of CAT modules
• Saves testing time by single cable connection and simultaneous measurement
• Timing, motion, and vibrations measurement
• Minimum trip voltage (MTV) test
• Graphical 10.1” touch-screen color display provides easy control of the test device and results analysis
