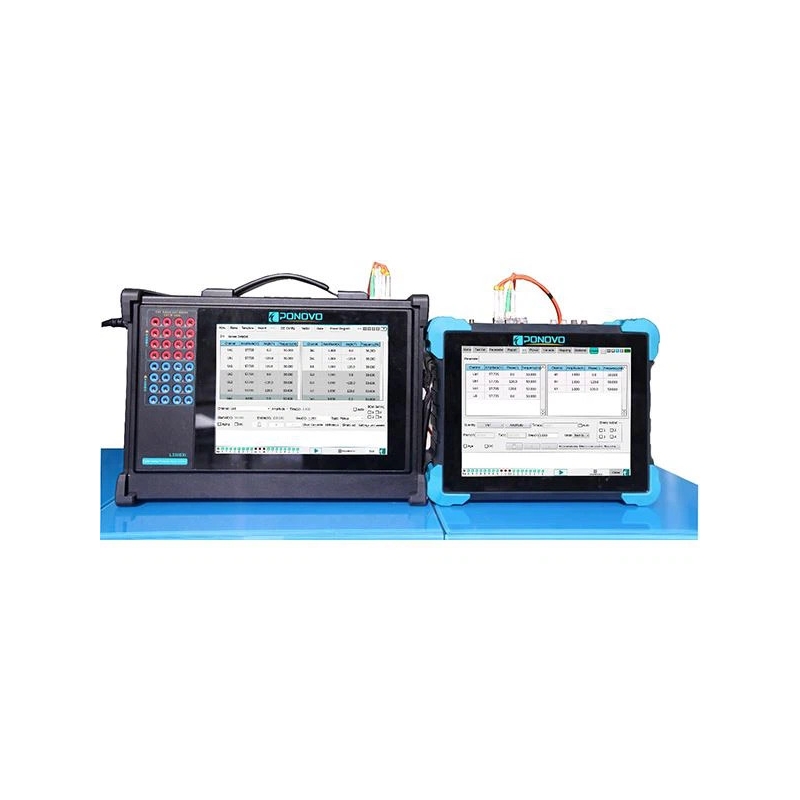

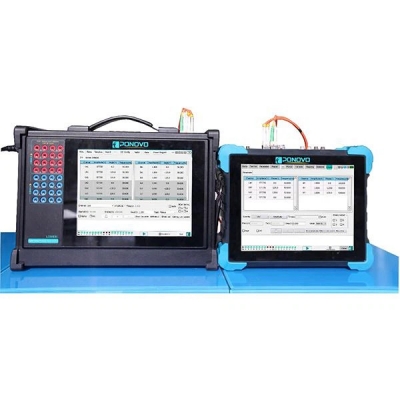

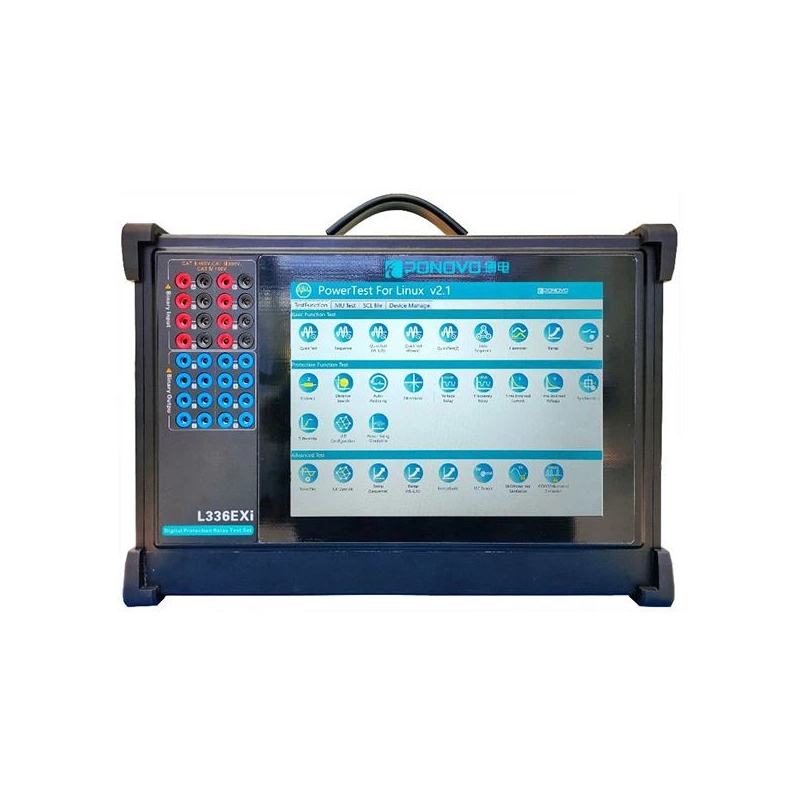

L336EXi-E Super-Light Digital Protection Relay Test Set is new generation of L336i series portable relay testing equipment launched by PONOVO. The weight of the whole machine is only 9kg. It is equipped with 4*20A/1*80A and 4*300V output, and fiber digital output capability, which could be used for testing any types of relays from electromagnetic relays, numerical relays, microcomputer relays, and digital relays based on IEC61850/IEC61869.

L336EXi-E can be used for distribution substation testing, very easy and price-competitive solution.

Features

- Supper light design, only 9kg, 1/3 of the weight of traditional testing system.

- Equipped with 4*20A/1*80A and 4*300V, high power output for different kinds of relay testing and stable signal output with high accuracy.

- Equipped with 8 fiber optic ports for different digital relay testing. Combined full IEC61850/IEC61869 function, support digital quantity include SMV (IEC61850-9-2, IEC61869-9) can be sent and received, and GOOSE can be published and subscription.

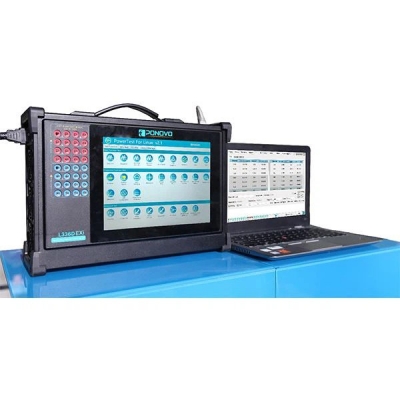

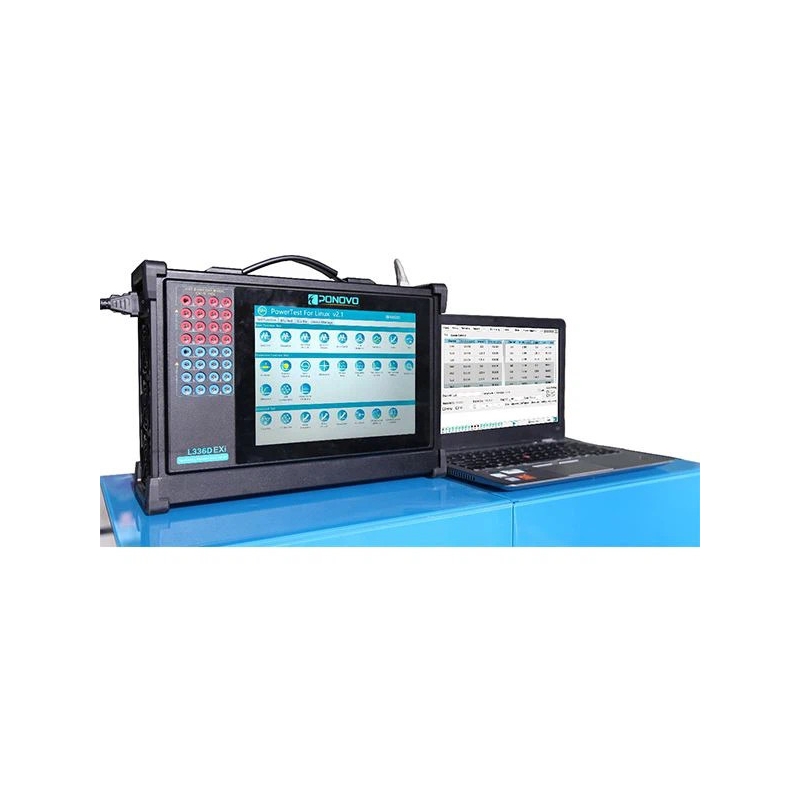

- Embedded with 10.4inch touchscreen for local operation or external PC control.

- Support importing characteristic curve via RIO, XRIO, CSV files into relay templates and associate the setting values.

- Built-In WIFI for wireless connection to PC.

- Built-in GPS, support IRIG-B and IEEE1588(PTP) Synchronization.

Applications

L336EXi-E supports analog output, binary input and output, SMV sending and receiving and GOOSE publish and subscription, can test secondary devices such as traditional or intelligent substation protection relay and measurement and control devices.
