CHARNAUD® SURVIVE-ARC® Body protection.

- Arc flash switching suit, with thermal liner for protection against arc flash, hot or burning transformer oil and corrosive liquids.

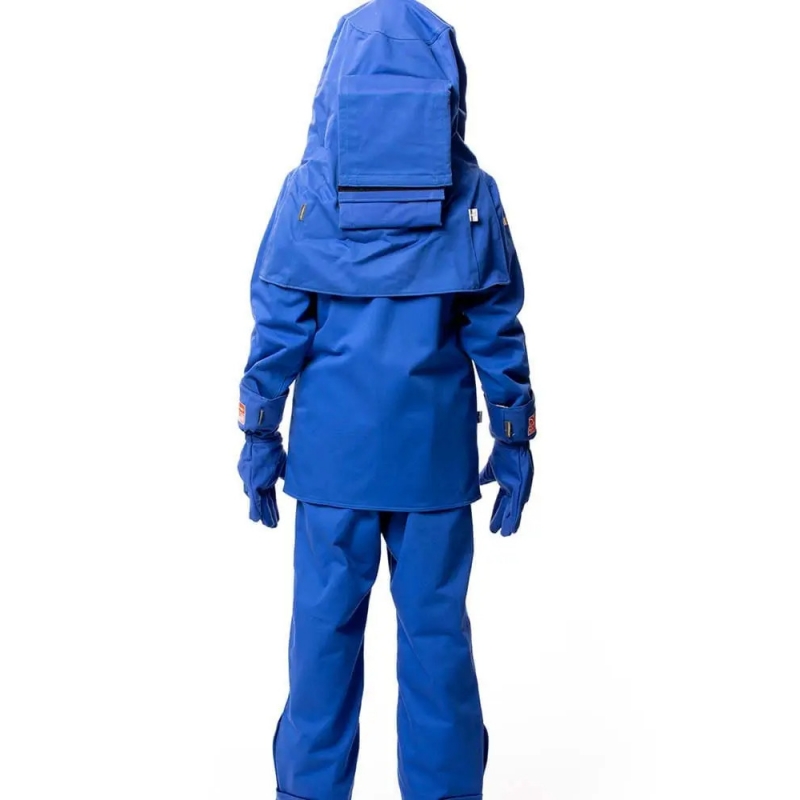

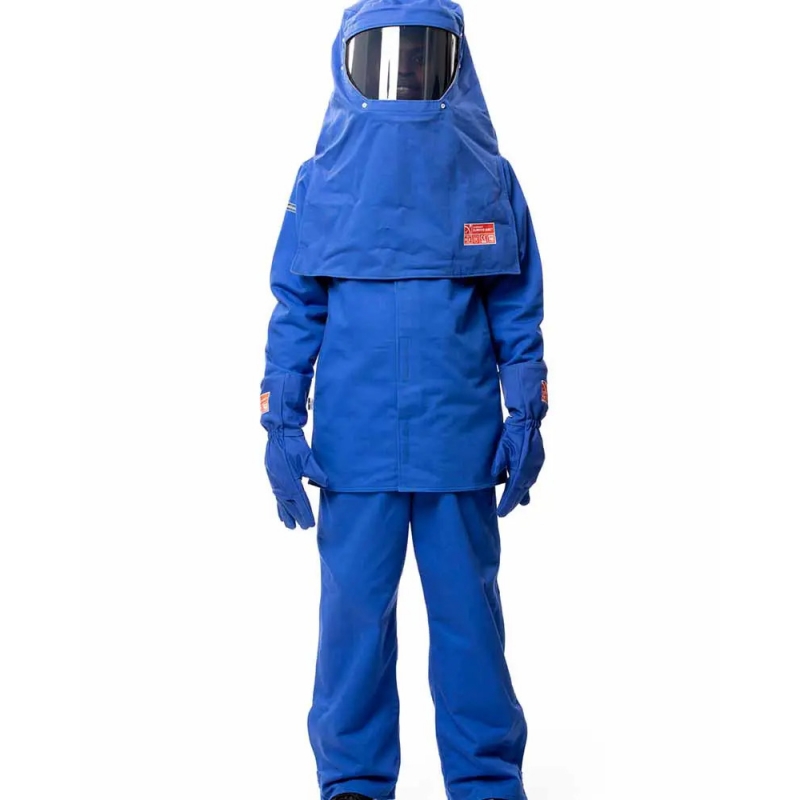

- Three-piece suit consisting of jacket, bib-and-brace trousers and ventilated hood. Arc rating of ATPV 51.5 cal/cm² indicated on garments and hood.

- Jacket: Long jacket with FR zip, FR Velcro® front closure and hemmed cuffs with strap and FR Velcro closure.

- Trousers: Bib-and-brace trousers with width adjustment on hips and leg openings.

- Switching hood: One piece ventilated shaped hood with large transparent lens with improved optical correctness, attached to internal dielectric hard hat with chinstrap.

- Mitts: See separate Product Information sheet.

Options:

- Company embroidery as required.

- ATEX zone 2/22 (II 3 GD Ex nA ic IIB T4 Gc tc IIIC T135°C Dc) certified headlamp for use in explosive environments, offers 60 lumens at 15m for 3h30 on hoods.

COLOUR : Navy

SIZE

Suit: S – 3XL

Hood: One size fits all. Hard hat with adjustable head size.

MATERIALS :

- FR/AR liquid proof outer with FR liner.

- Face shield: Dual pane, transparent with improved optical correctness, anti-fog.

APPLICATION : Arc flash protective work wear for the electrical industry, including the presence of hot/burring transformer oil and corrosive liquids.

HAZARD ASSESSMENTS

Thermal effects from arc flash and presence of flammable/hot transformer oil and corrosive liquids.

FEATURES

- Liquid and chemical proof FR/AR outer fabric with sealed seams.

- Exceptional insulation from high heat loads.

- Thermal liner has excellent breath-ability with moisture/sweat absorption and dissipation.

- Water washable.

STANDARDS : Fabric and/or garment:

- NFPA 70E.

- ASTM F2621.

- ASTM F2178.

- IEC 61482-2.

- SANS 724.

- ASTM F1930 – Body burn percentage: 0%, excluding head, hands and feet.

- ATPV¹: 51.5 cal/cm²
