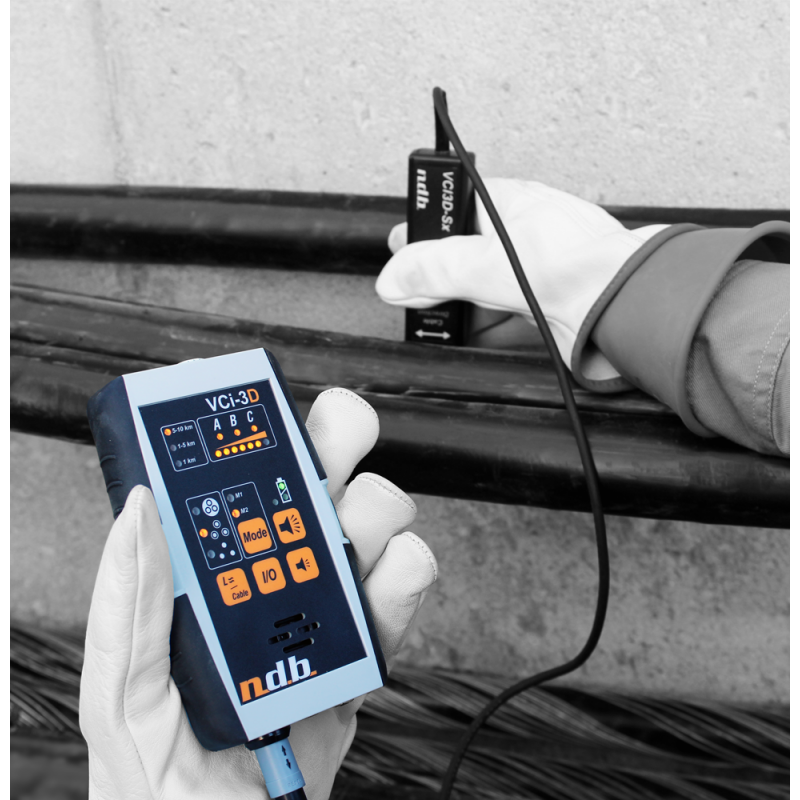

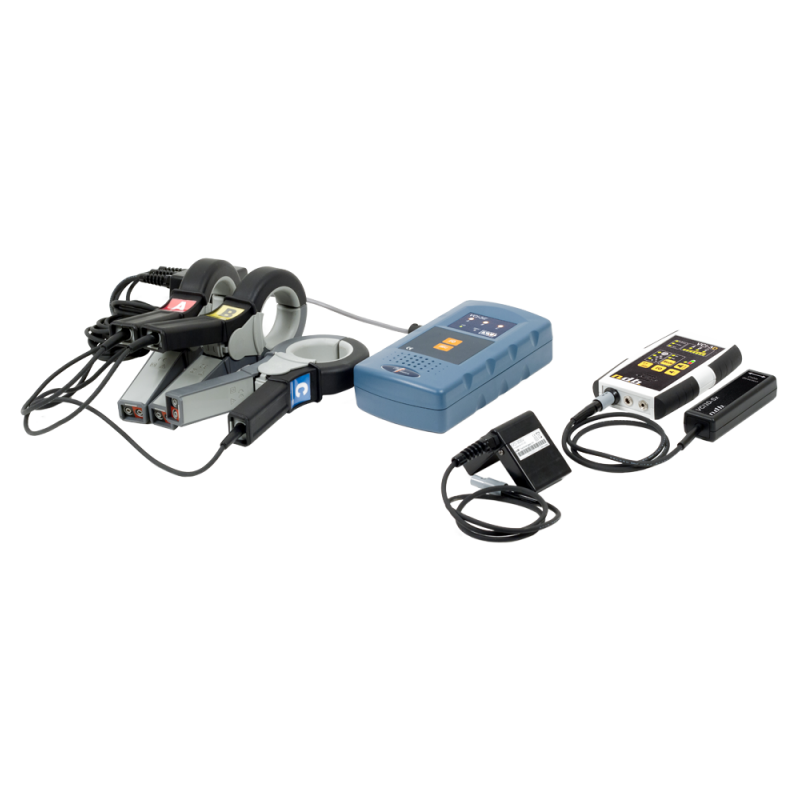

The VCI-3^TM is a cable identification and phasing system used during installation or maintenance works on de-energized three phase systems.

The VCI-3^TM uses a current injection technique. The current is injected in the wire conductors or by magnetic transducers. Grounding is required at one or two ends of the three phase circuit, which can stay in place during intervention to ensure maximum operator safety. The detector’s unique tone sensing system guarantees flawless and safe identification and tagging and it is a very easy compact device to use.

Advantages

- Unique balanced injection system that eliminates signal bleeding on other wires.

- Three different frequencies to identify each phase.

- Easy to install and operate.

- Extended range: up to 10km of working distance.

- Tone transmission for more than 8 hours.

- Lightweight and compact.

- Optional magnetic sensing transducer.

- Phase detection by transmitter tone presence or absence.

- Digital filtering of network harmonics.

- Unique dual grounded method.
