The LCI^TM is intended for energised cable identification on secondary and primary circuits. It features a dual frequency technique that eliminates false identifications.

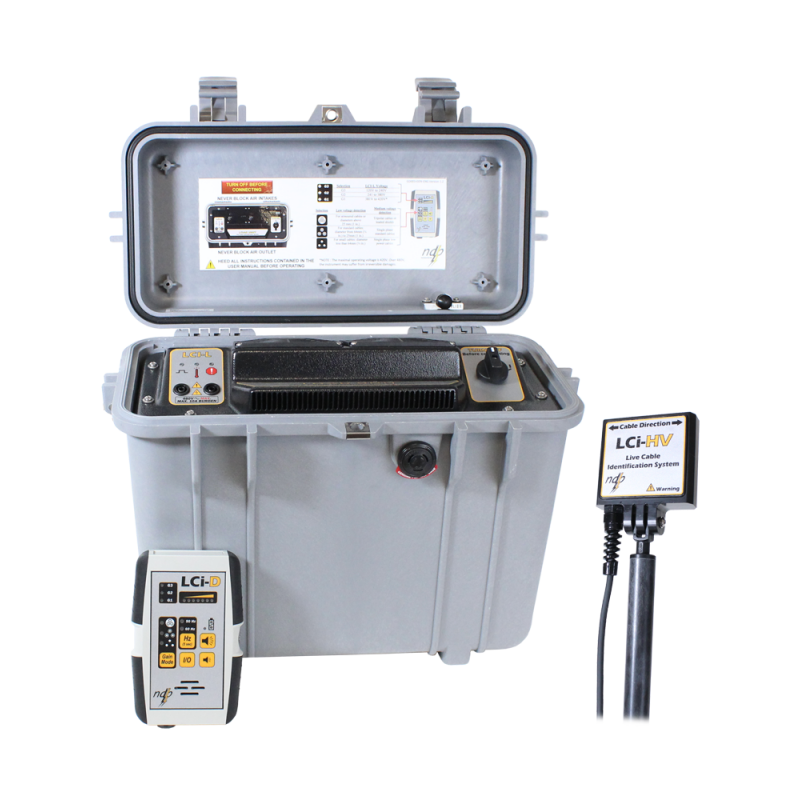

The LCI^TM system is composed of two main parts:

- LCI-L^TM, load module.

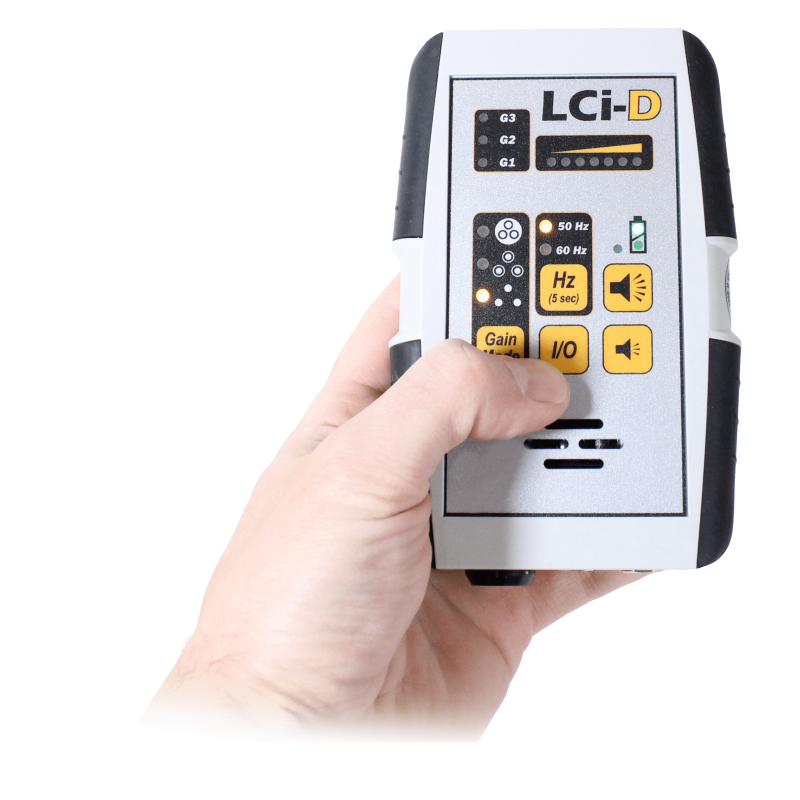

- LCI-D^TM, detector module.

Low Voltage Cable Identification

The LCI-L^TM load module is connected to the secondary side of the distribution transformer (120 VAC to 420 VAC).

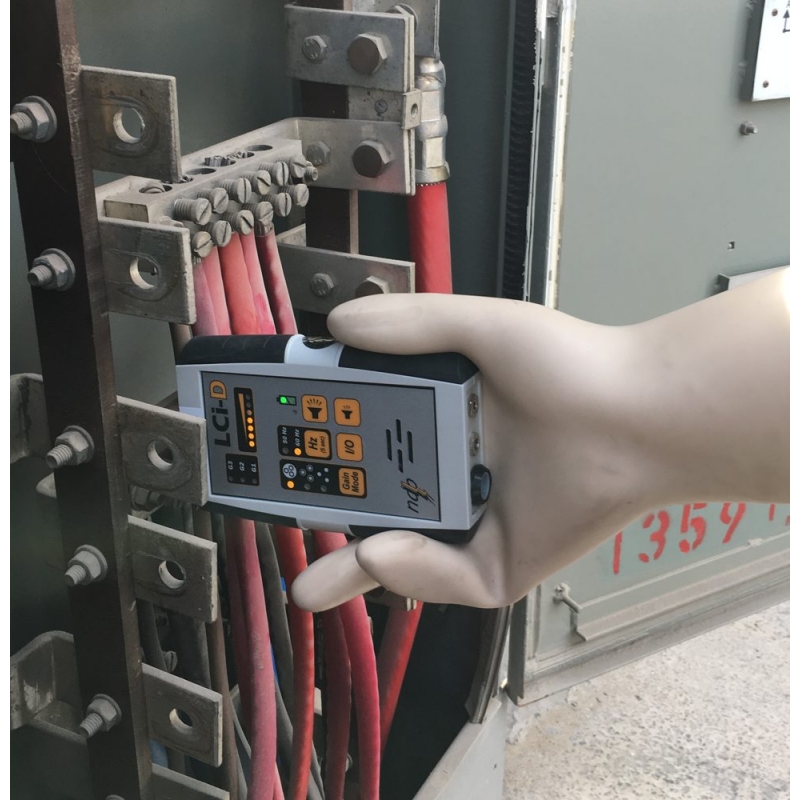

The LCI-D^TM detector module is used on insulated distribution low voltage cables (120 VAC to 420 VAC) on the secondary side of the transformer. It detects the signal coming from the LCI-L^TM thus identifying the cable confirming its tags.

High Voltage Cable Identification

The LCI-L^TM load module is connected to the secondary side of the distribution transformer (120 VAC to 420 VAC).

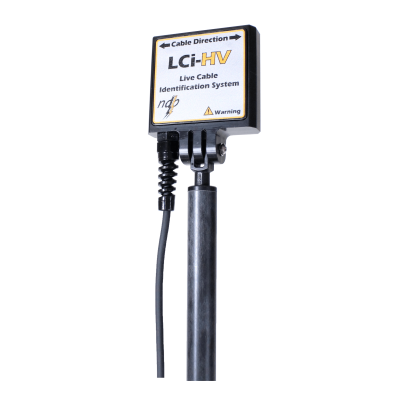

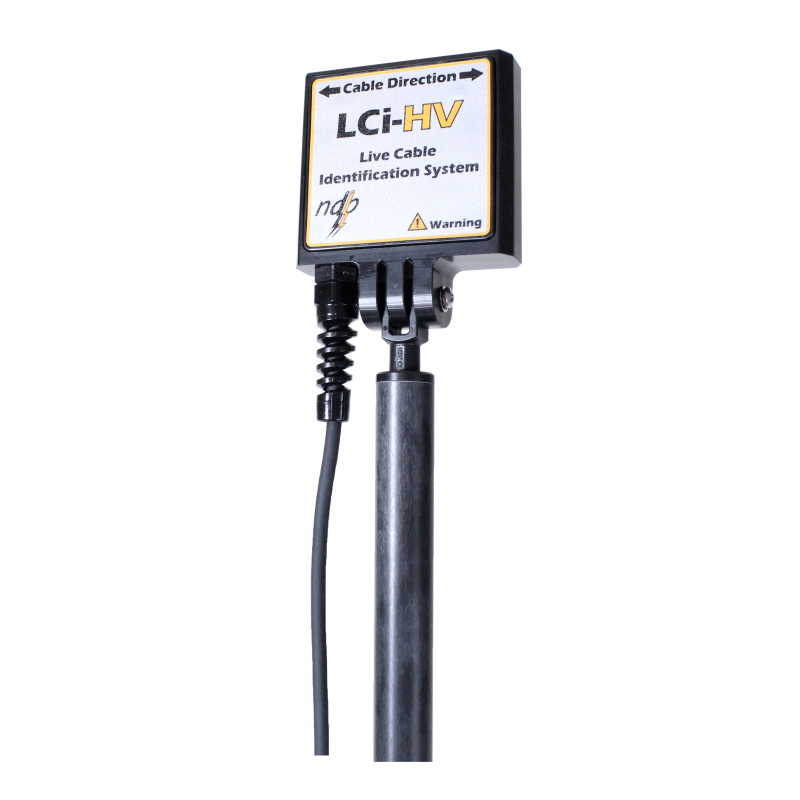

For high voltage cable identification, the LCI-D^TM detector module must be combined with the LCI-HV^TM high voltage probe.

The LCI-HV^TM probe is designed to identify online cables up to 25kV and can be used on single phase and three phase circuits.
