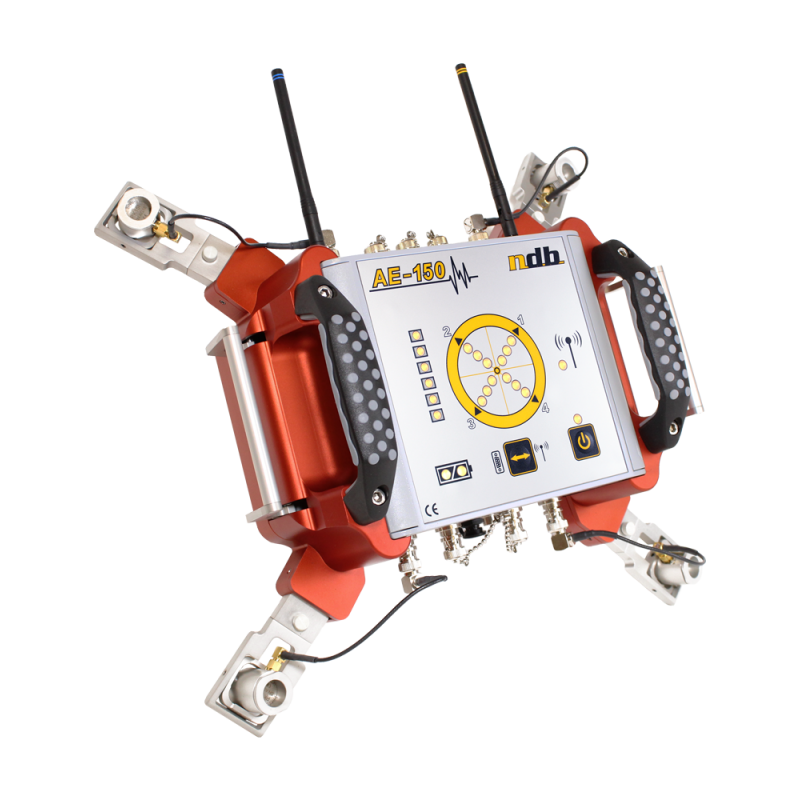

The AE-150™ is designed to detect and localize Partial Discharge activity by correlating acoustic and electric sensors’ data. The AE-150™ has many acquisition modes, each used for detecting and locating Partial Discharge activity in a transformer. The AE-150™ unit is mounted on the transformer tank using its powerful magnets that also hold four acoustic sensors. Acquired data is sent to Mirador-Tx software where all advanced positioning functions are implemented. This cutting-edge software allows easy data interpretation, reporting and monitoring.

Advantages

- Easy to install and use

- Portable, battery-operated, wireless data transfer, weatherproof

- Mirador-Tx software allows automatic configuration and 3D positioning

- Simultaneous processing of AE and PD signals

- NEW: Monitoring Feature!

Compatibility

The AE-150™ is compatible with our UHF antenna™ for straight type valves and HFCT™ clamps for ground returns.

Installation

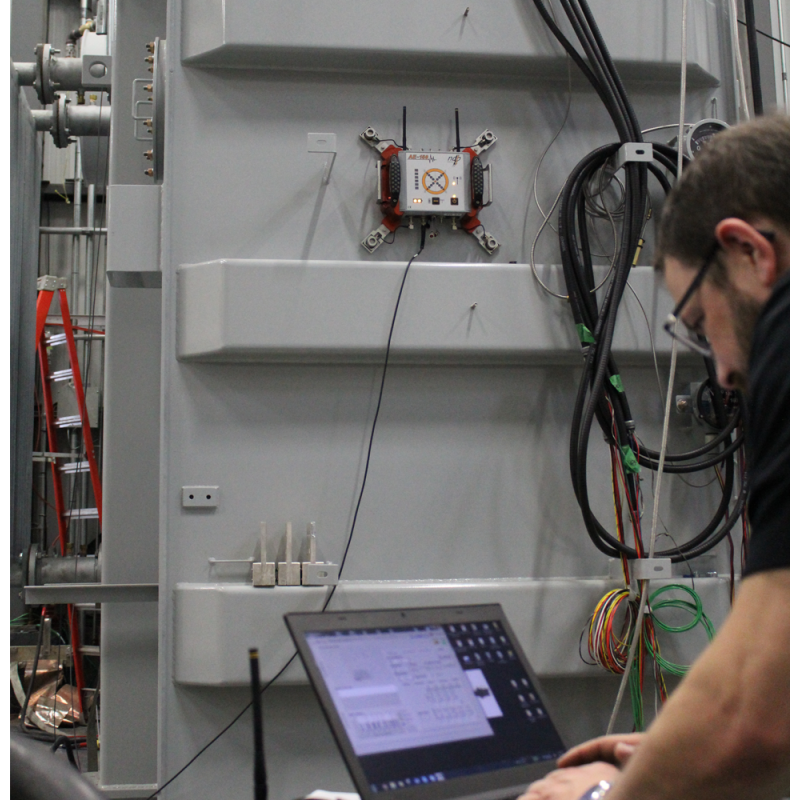

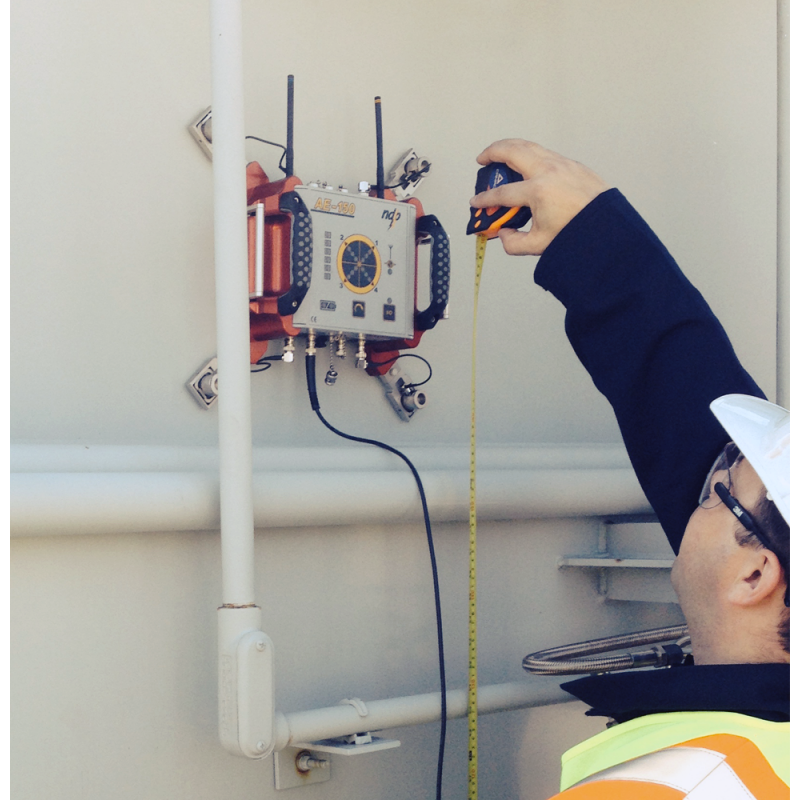

The AE-150™ is installed on the transformer's tank using its powerful magnets. The transformer dimensions are measured and noted in the PC software along with the AE-150™position. The instrument communicates wirelessly with a PC computer. All commands and data analysis are done on the PC.

Application and Operation

Power transformers are critical to transmission and distribution substations. In fact, losing a unit can have major financial consequences. To protect your investment, use Acoustic Emission Testing. This technique is superior to electric methods for on-site testing. The AE-150™ detects and locates Partial Discharges in power transformers by analyzing ultrasonic waves produced by electrical insulation breakdowns or high heat. The ultrasonic waves travel through the oil and strike the transformer’s tank, providing the AE-150™ the signals needed to locate the flaw. The instrument is installed on the transformer using the integrated magnetic mounting system. This features provides an easy way of moving the AE-150™ to survey the entire transformer. The remote user interface and the RF communication system allow safe operation of the unit in any outdoor conditions. Developed in partnership with Hydro-Quebec and I.R.E.Q. laboratory, the AE-150™ brings a high level of acoustic and electrical expertise in an easyto-use and efficient package.
