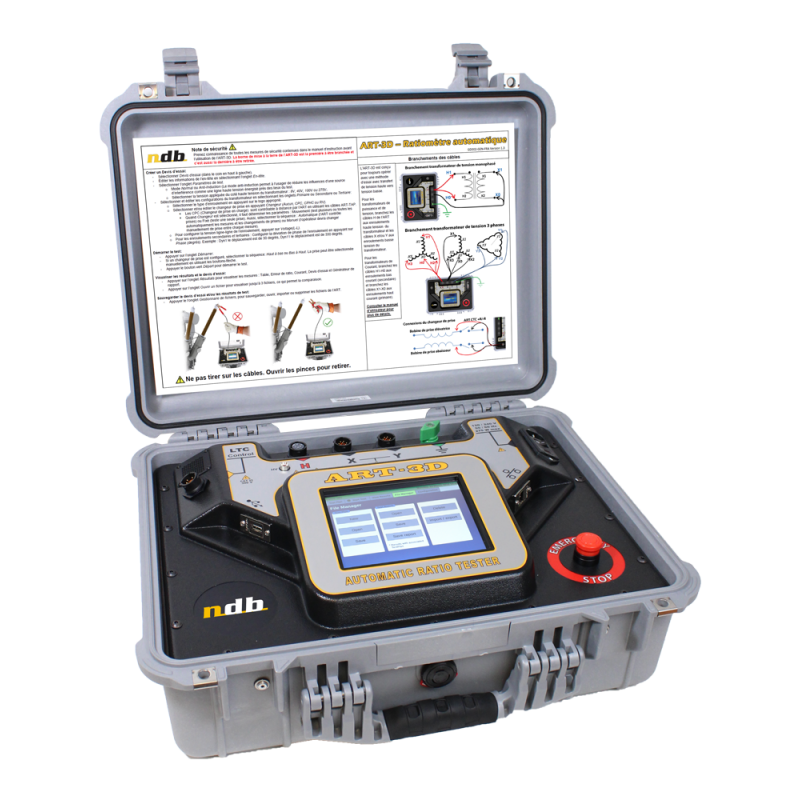

Transformer Turns Ratio Tester

The ART-3D^TM series of ratio meters are high-precision instruments, designed to measure turn ratios, phase displacements, excitation currents of single phase and three phase power, distribution, and instrument transformers in conformity with IEEE C57.12.90 & IEC 60076 standards.

The ART-3D^TM is top-of-the-line turns ratio tester, well-thought, and high precision manufactured instrument.

Highlights

- Real 3 phase output up to 275V.

- Very high accuracy 0.03%.

- Primary, secondary, tertiary in 1 test.

- Onboard LTC wizard.

- Fully automatic LTC test sequence.

- Tests all transformer configurations.

- Automatic vector group detection.

- High performance anti-induction.

- Powerful anti-induction mode eliminating interference from nearby energized apparatus.

- Intuitive menus with touchscreen display.

- Wired or wireless remote control. Zero learning curve PC software.

- USB port to save test results with PDF format.
