POM2-6143

Description

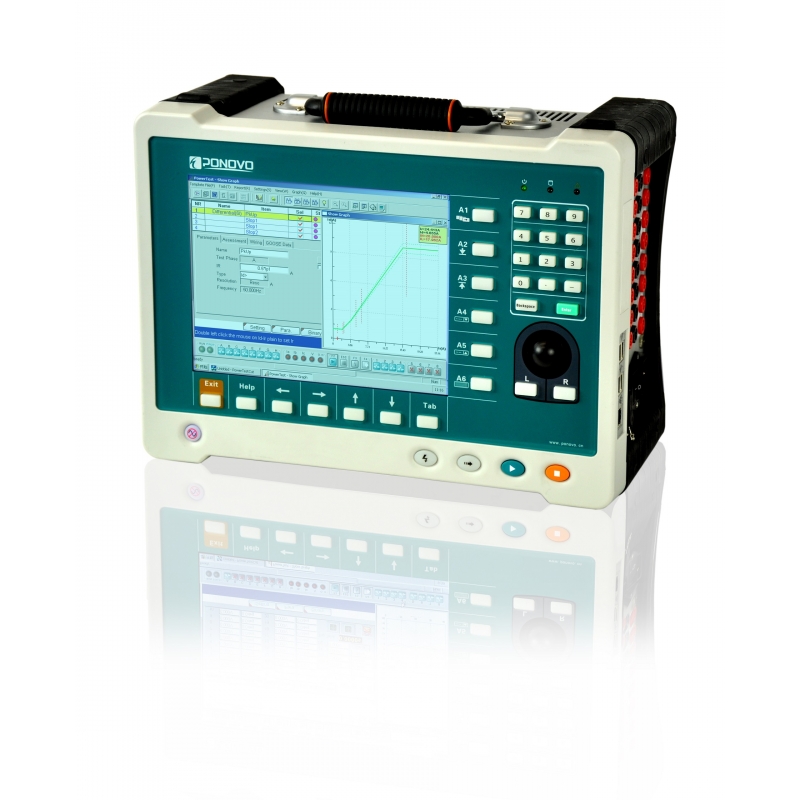

POM2 (optional output) is the six current relay testing equipment. This universal test set with 6 current outputs is capable of testing all types of protective relays. This relay tester has an in-built output monitoring and recording function and also supports testing IEC61850 IED. The most significant feature of the relay testing system POM2 is the optional internal PC control with 10.4 color LCD display.

Features:

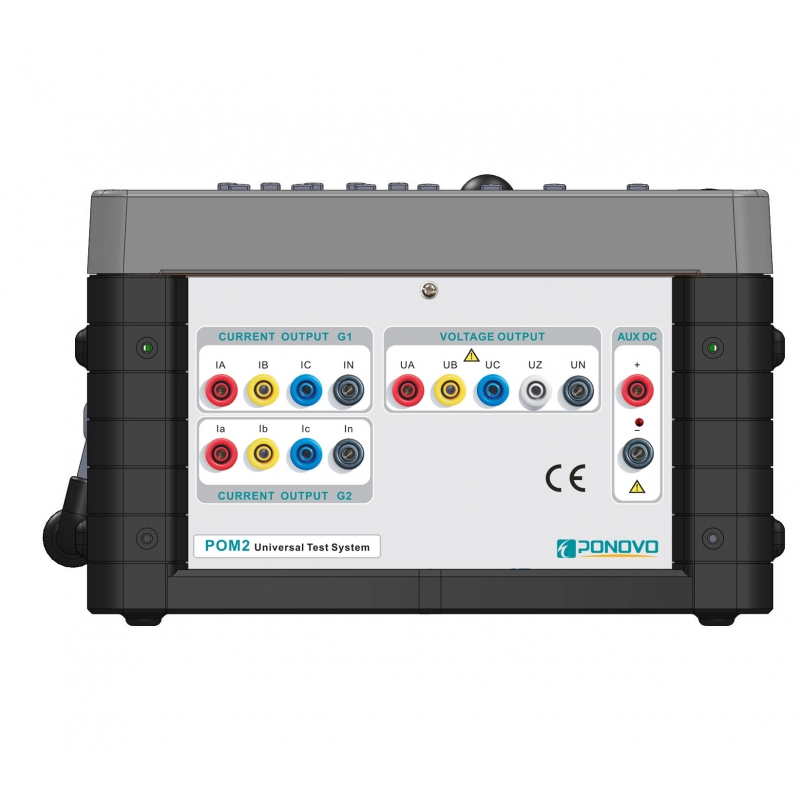

·       Current & voltage amplifier 10 output channels.

·       Can be upgraded to support the test of IEC61850 complied relay.

·       Adjustable threshold (0-400V) for binary inputs.

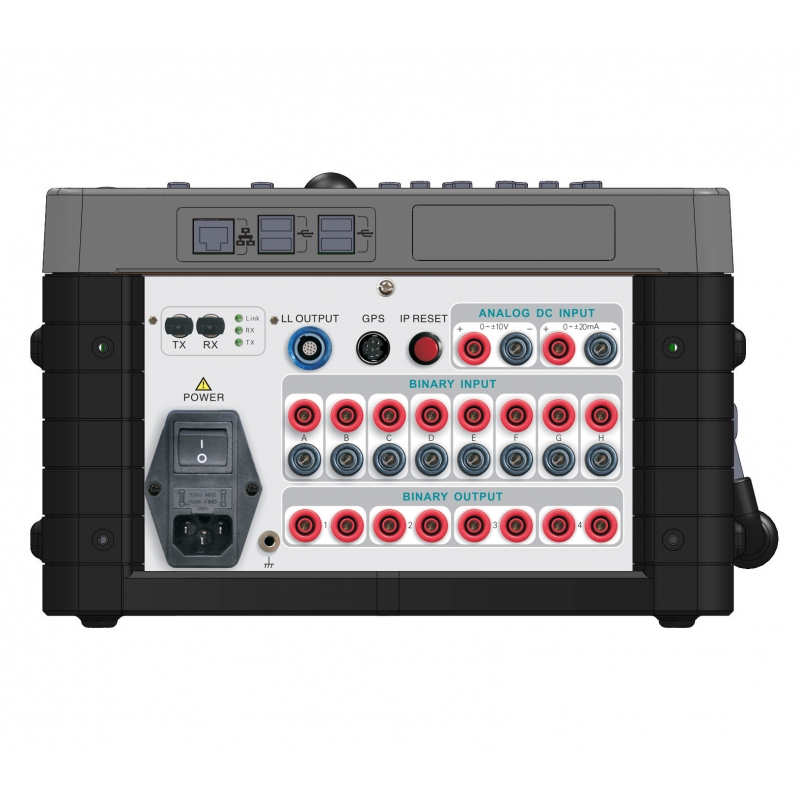

·       8 binary inputs, 8 binary outputs.

·       Aux DC (0-300V), DC measuring inputs.

Main Specifications

Current



Range

6 x 0-15A

Power(typical)

6 x 105VA at 15A

3 x 210VA at 30A

Accuracy (typical)

<0.08% rd + 0.02% rg.guar., at 0-15A

Voltage



Range

4 x 0-300 VAC 1x0-600VAC

4 x 0-±300 VDC 1 x 0-±600 VDC

Power (typical)

4 x 75VA at 300V

3 x 100VA at 300V

Accuracy (typical)

<0.08% rd + 0.02% rg.guar., at 0-300V

Frequency



Sine signal

0.001 … 1000Hz

Transient signal

DC … 10.0kHz

Accuracy

0.3ppm

Phase angle



Range

-360o - +360o

Accuracy (typical)

0.05o

Auxiliary DC supply

0-300V

Power

88W at 110V, 110W at 200V

Binary input



Number

8

Type

0-400VDC or AC (at peak) with adjustable threshold or potential free

Binary output



Number

8

Type

Semiconductor

Low level output



Number

12

Accuracy (typical)

0.025%

DC measurement



Voltage measuring

0 … ± 10V

Current measuring

0 … ± 20mA

IEC61850 GOOSE

Optional

Dimension

360*287*214mm

Weight

16kg
