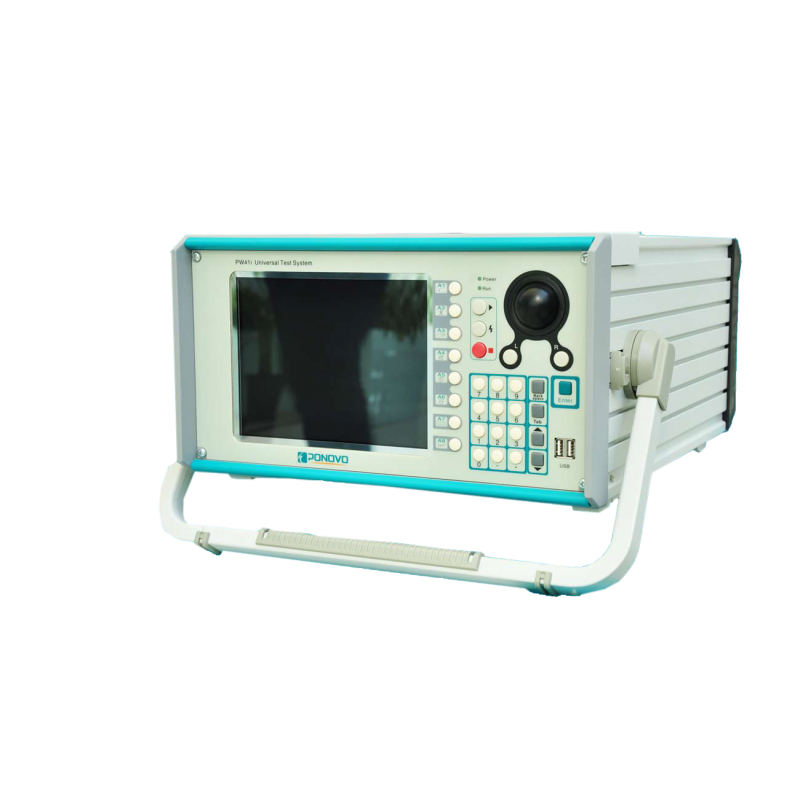

PW41i

Description

This relay test equipment is designed with 3 currents (3*40A) and 4 voltages (4*300V). The local software system is designed based on Windows system, which is easy and convenient for operation and upgrade. It supports using templates for various relay testing, for example, G59. The relay test set PW41i is the favourable and economical testing solution for commissioning work in distribution grid.

Main Specifications

Current



Range

3 x 40A

Power(typical)

3 x 400VA at 40A

Accuracy (typical)

0.08% reading + 0.02% range

Voltage



Range

4 x 0-300 VAC 1x0-600VAC

4 x 0-±300 VDC 1 x 0-±600 VDC

Power (typical)

4 x 75VA at 300V

3 x 100VA at 300V

Accuracy (typical)

0.08% reading + 0.02% range

Frequency



Sine signal

0.001 … 1000Hz

Accuracy

0.002% at 50Hz

Phase angle



Range

0 - 360o

Accuracy (typical)

0.2o

Auxiliary DC supply

220V, 110V, ADJ(0-300V)

Binary input



Number

8

Type

Potential free

Binary output

4

Type

Potential free relay contacts, software controlled

Dimension

364*200*475mm

Weight

23kg
