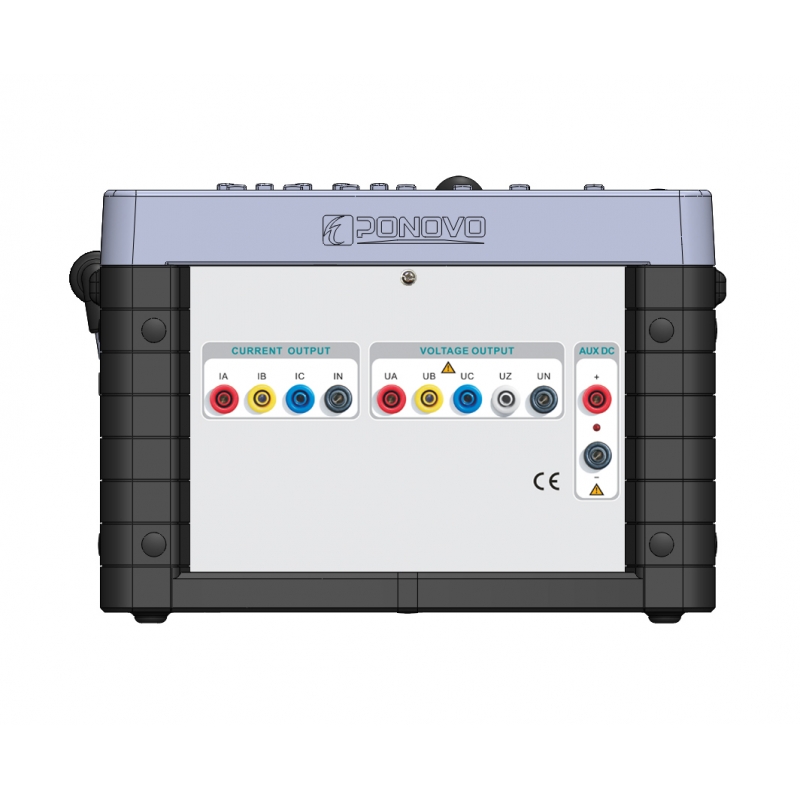

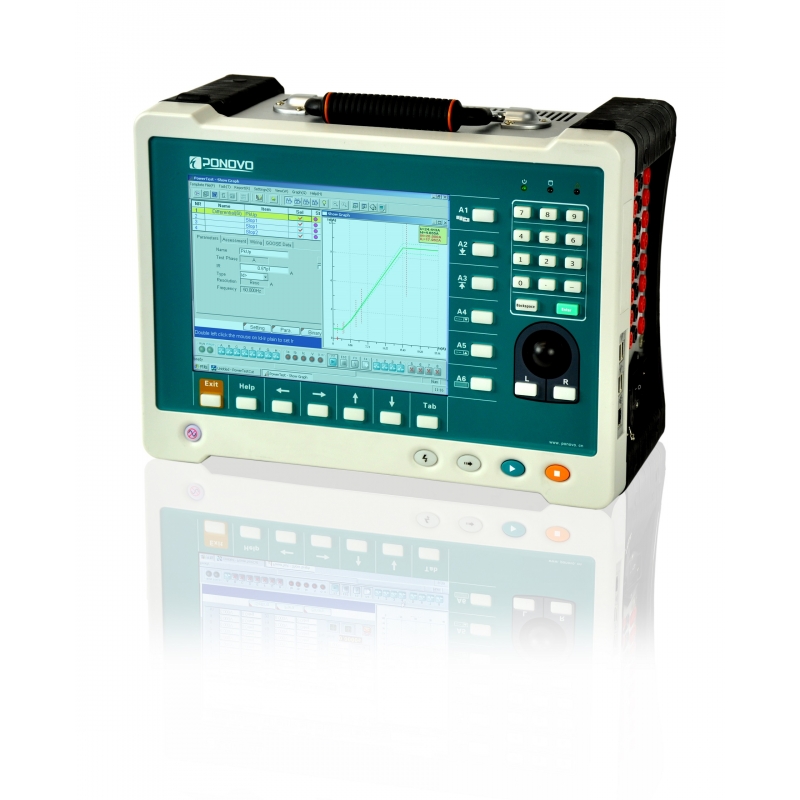

POM2-3243

Description

POM2 (optional output) is the three-phase relay testing equipment. This universal relay testing set with 3 current outputs is capable of testing all types of protective relay. This relay tester has in-built output monitoring and recording function and also support IED61850 IED testing.

Features:

·       Aux DC (0-300V), DC measuring inputs.

·       8 binary inputs, 8 binary outputs.

·       Adjustable threshold (0-400V) for binary inputs.

·       In-built analog monitoring and recording function.

·       Can be upgraded to support the test of IEC61850 complied relay.

·       Current and voltage amplifier 12 input channels.

Main Specifications

Current



Range

3 x 0-20A

Power(typical)

3 x 140VA at 20A

Accuracy (typical)

<0.08% rd + 0.02% rg.guar., at 0-15A

Voltage



Range

4 x 0-300 VAC 1x0-600VAC

4 x 0-±300 VDC 1 x 0-±600 VDC

Power (typical)

4 x 75VA at 300V

3 x 100VA at 300V

Accuracy (typical)

<0.08% rd + 0.02% rg.guar., at 0-300V

Frequency



Sine signal

0.001 … 1000Hz

Transient signal

DC … 10.0kHz

Accuracy

0.3ppm

Phase angle



Range

-360o - +360o

Accuracy (typical)

0.05o

Auxiliary DC supply

0-300V

Power

88W at 110V, 176W at 200V

Binary input



Number

8

Type

0-400VDC or AC (peak) with adjustable threshold or potential free

Binary output



Number

8

Type

Semiconductor

Low level output



Number

12

Accuracy (typical)

0.025%

DC measurement



Voltage measuring

0 … ± 10V

Current measuring

0 … ± 20mA

IEC61850 GOOSE

Optional

Dimension

390*287*214mm

Weight

15.5kg
