L336i-E

Description

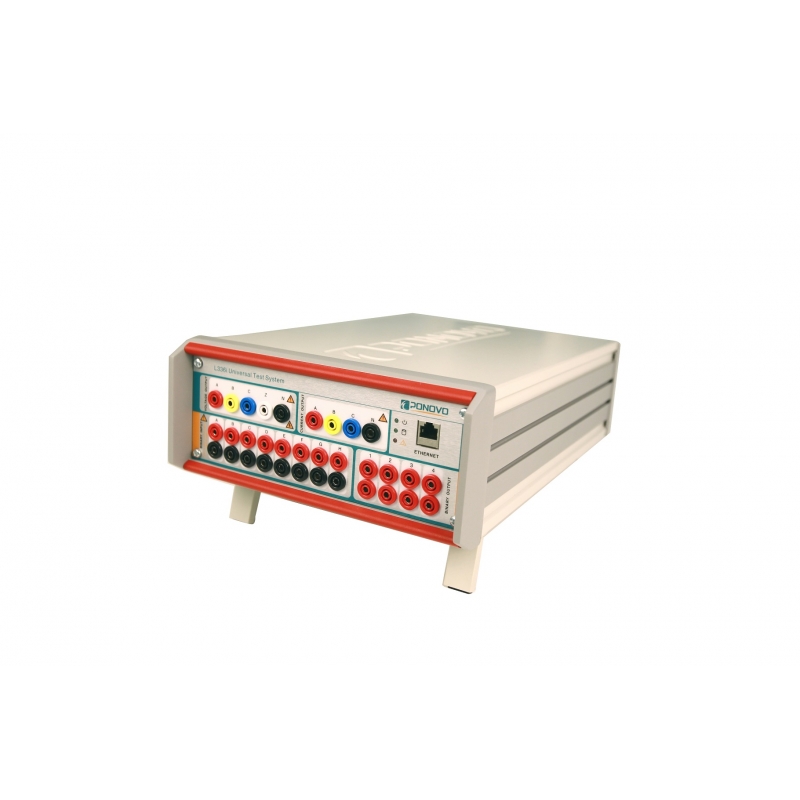

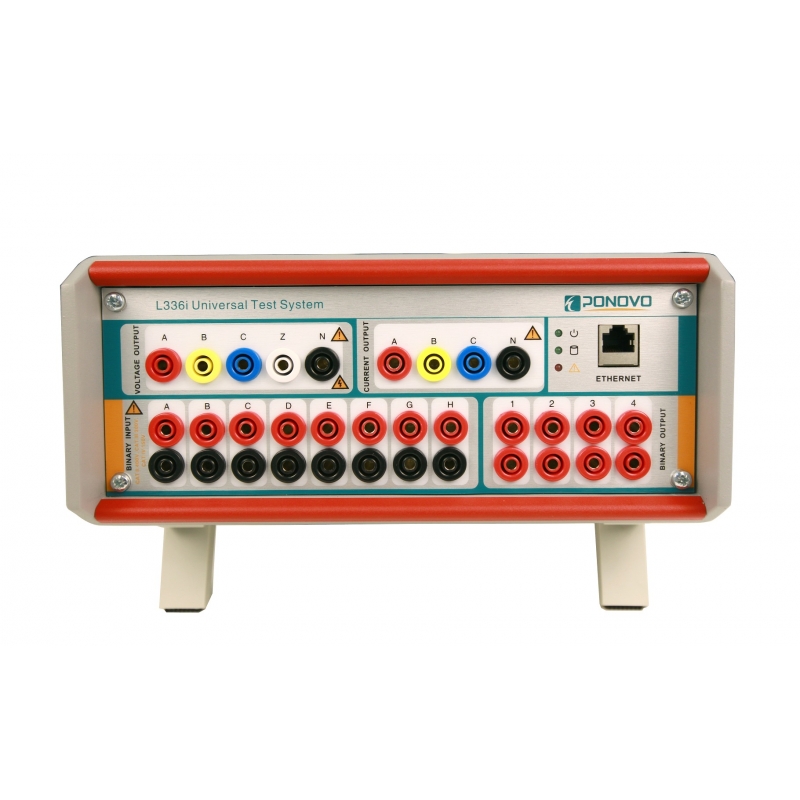

L336i-E is the new economic version of relay test equipment L336i. It is designed with 3 currents (3*20A) and 4 voltages (4*300V), with only 8.6kg and powerful PowerTest software, it can test most types of modern multi-function relays. It is the best portable and economic choice for relay test engineers.

Features:

·       3*20A, 4*300V.

·       8 binary inputs, 4 binary outputs.

·       Adjustable threshold (0-400) for binary inputs.

·       Can be upgraded to support the test of IEC61850 complied relay.

·       Weight: 8.6 kg.

Main Specifications

Current



Range

3 x 20A or 1 x 60A

Power(typical)

≥ 104VA at 20A

LN

Frequency-amplitude characteristic

≤± 0.1% - ± 0.5% (1Hz-1kHz)

Voltage



Range

4 x 0-300 VAC 1x0-600VAC

4 x 0-±300 VDC 1 x 0-±600 VDC

Power (typical)

4 x 75VA typ. at 300V, 4x50VA guar. at 300V

3 x 100VA typ. at 300V, 3x85VA guar. at 300V

Frequency-amplitude characteristic

≤± 0.1% - ± 0.5% (1Hz-1kHz)

Frequency



Sine signal

0.001 … 1000Hz

Accuracy

0.3ppm

Phase angle



Range

-360 - +360o

Accuracy (typical)

±0.05o type., ±0.1o guar.

Binary input



Number

8

Input characteristics

0-400VDC/400VAC peak threshold or potential free

Binary output

4

IEC61850 GOOSE

Optional

Dimension

256*110*395mm

Weight

8.6kg
