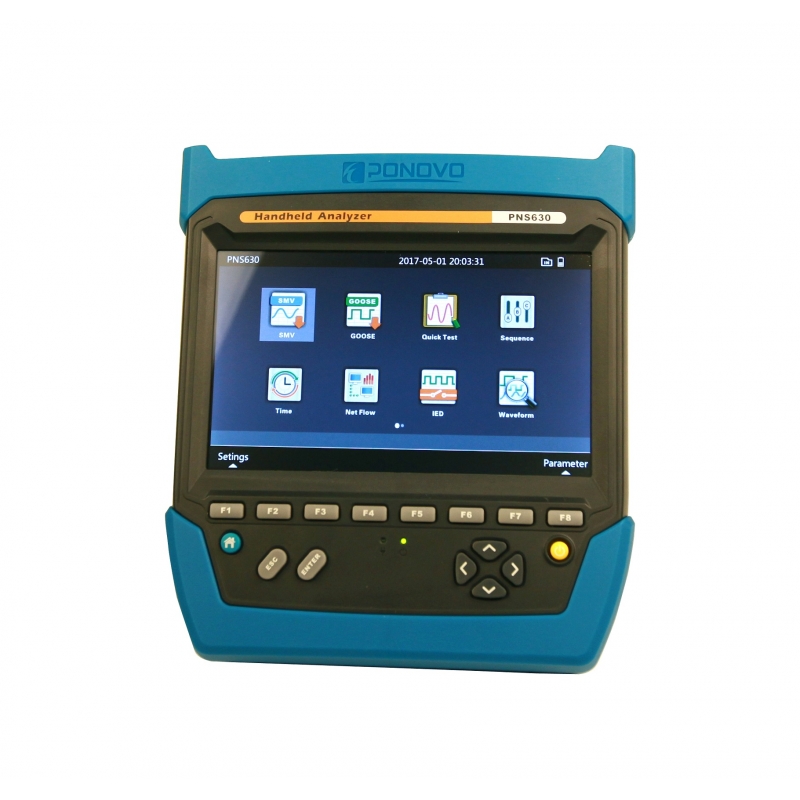

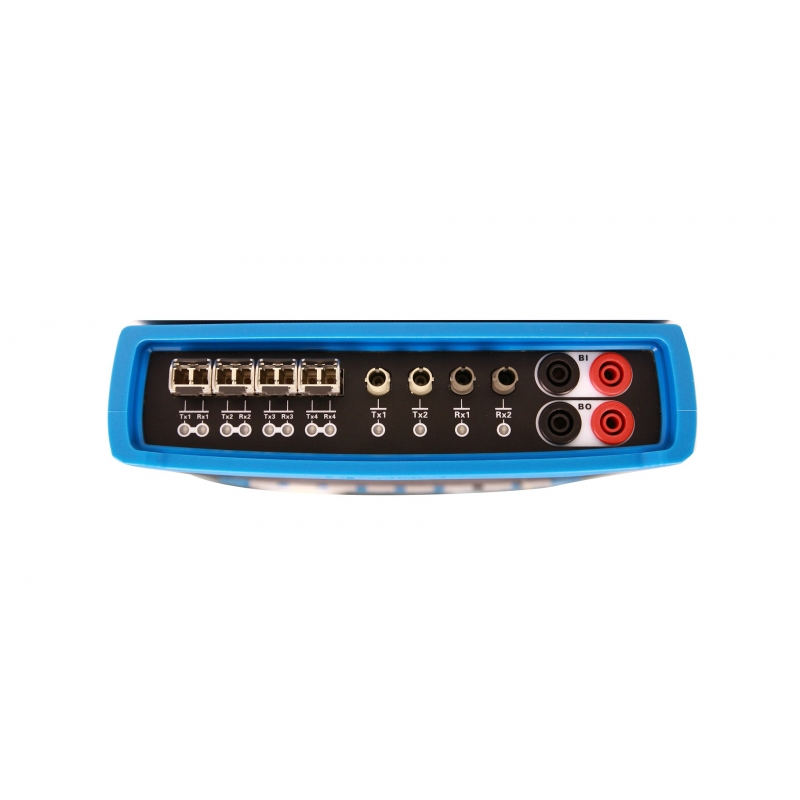

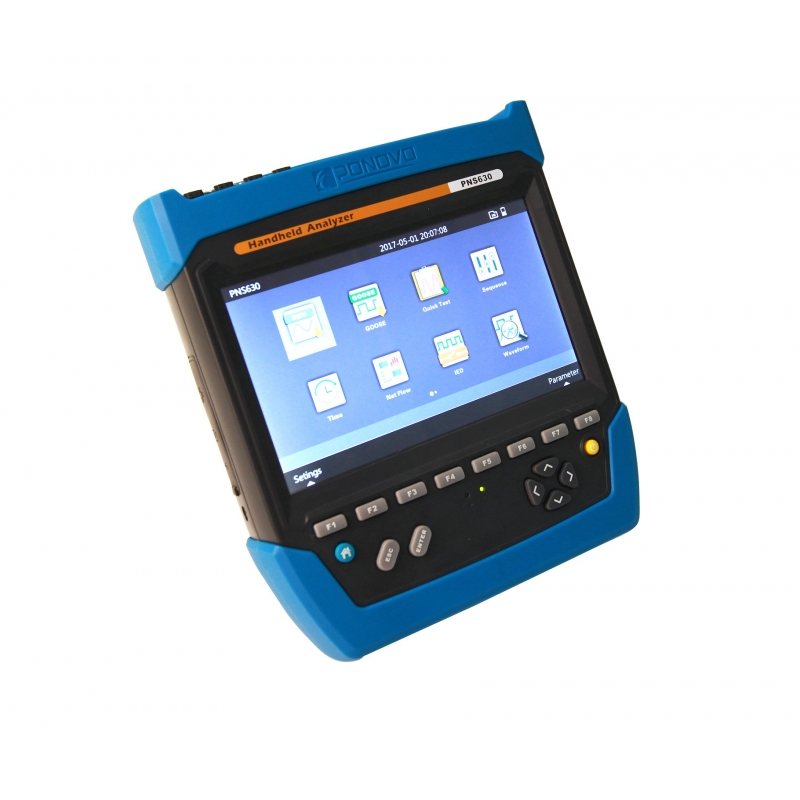

PNS630 is a handheld IEC61850 network analyzer that is designed for smart substation maintenance. IEC61850-8-1 (GOOSE), IEC61850-9-2, IEC60044-7/8 message can be monitored and analyzed. It is also equipped with digital relay test function. SMV GOOSE message numerical and status analysis will be realized and displayed visually by its numerical analyzing function.

Features:

·       Support IEC61850-9-2, IEC60044-7/8 (FT3), GOOSE, IRIG-B, and IEEE1588 standards.

·       Support SCD, ICD, CID file analysis to get sampling value, sampling channel, and GOOSE signal configuration.

·       SCD displayed in graphs.

·       Support SMV and GOOSE monitor and record the abnormal messages.

·       Support IEC60044-7/8 (FT3) send and receive. The baud rates are available: 2.5Mbps, 5Mbps, 10Mbps.

·       Support IEC61850-9-2/9-2LE send and receive. ASDU 1-8 is also available.

·       Support message monitor and record (PCAP format) for analysis.

·       Support network load analysis.

·       Support phase check.

·       Support IRIG-B and IEEE1588 synchronization to provide time synchronization and clock source.

·       Simulate MU to output IEC61850-9-2, IEC60044-7/8 to test digital relays.

·       Support IED time delay and SOE test.

·       Support MU time delay test, synchronization and time test.

·       Support to output messages in different flow.

·       Support SMV in different status in maximum 10.

·       Support DC testing to test digital voltage, CT and PT’s polarity.

·       Support dBm test within -31dBm to -14dBm at wavelength 1310nm.

·       Large LCD screen to operate.

·       Chargeable battery and can operate for about 6 hours continuous usage.
